Condensed Geology: Wyoming Mountains [Map] Grand Teton

Wyoming has mountians that originate from different kinds of tectonic processes.

Story.

Figure 1
Figure 1

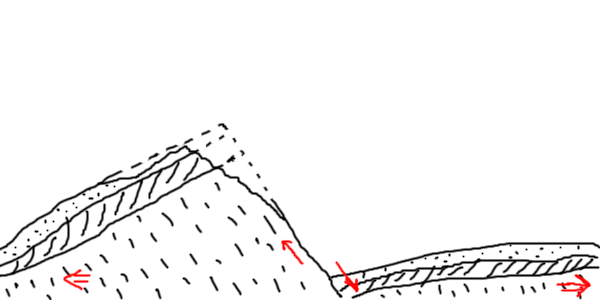

Normal Fault. Crust extension creates a steep fault; one side slides up, another down. Example: Teton Range.



Figure 2
Figure 2

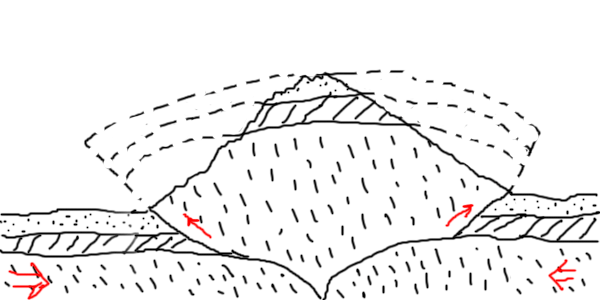

Thick-skinned Compression. Crust compression pops up a block along a pair of steep faults. Example: Wind River Range.



Figure 3
Figure 3

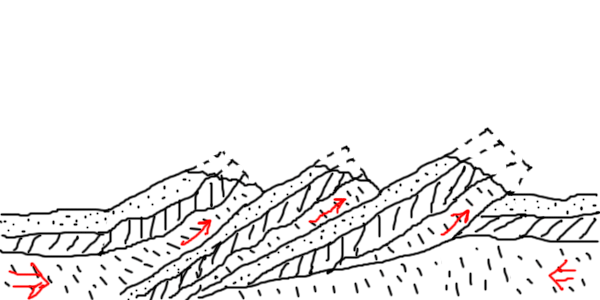

Thin-skinned Compression. Crust compression creates a stack of slabs sliding along oblique faults. Example: Hoback Range.



Figure 4
Figure 4

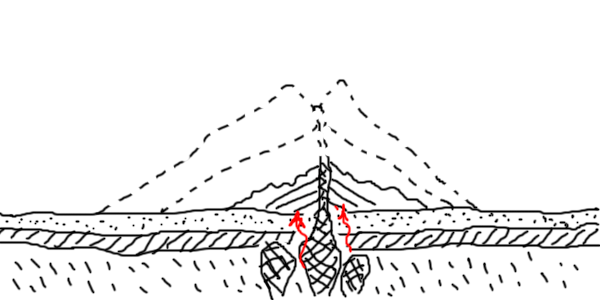

Volcanic. Erupted and eroded volcanos. Example: Absaroka Range.



References.

David R. Lageson, Darwin R. Spearing Roadside Geology of Wyoming (Roadside Geology Series) Mountain Press Publishing Company, 1991, ISBN: 0-87842-216-1
